| G系列減速電機箱體采用鋁合金(機型G18/G22/G28)和鑄鐵(機型G32/G40/G50)，外型美觀，分為底腳安裝和法蘭安裝兩種機座，適應全方位的安裝；
◆ 高強度合金材料的斜齒輪，結構更緊湊，箱體體積更小，效率更高，輸出扭矩更大；
◆ 精密加工的硬齒面傳動齒輪，變形小，精度高，平穩運轉,噪音低，能適應在惡劣環境中長期連續工作；
◆ 輸出軸直徑分為Ф18、Ф22、Ф28、Ф32、Ф40、Ф50六種規格；
◆ 兩級或三級傳動，速比范圍大，每單個機座具有從5：1到200：1的14種減速比；
◆ 采用優質軸承，延長使用壽命；
◆ 高性能的油封可防止潤滑油回漏電機內部；
◆ 三相電機：采用標準全封閉型專用鋁殼電機，具較佳防水性，易散熱及運轉效率高；
◆ 模塊化組合使傳動比范圍拓展至：i = 5：1～1400：1。
技術數據
●減速器速比范圍[i] 4.86 ～ 202.5；
●輸出扭矩0～388[Nm]；
●電機功率范圍0.1 ～2.2[kW]；

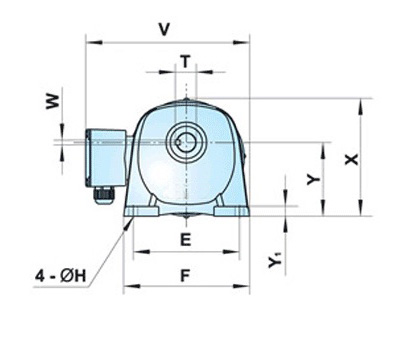

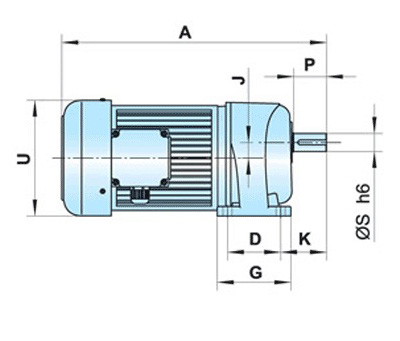

臥式減速電機--外形圖

|
功率
KW |
輸出軸 |
減速比
Ratio |
主要外形及安裝尺寸 |
|
A |
D |
E |
F |
J |
G |
H |
K |
P |
S |
T |
U |
V |
W |
X |
Y |
Y1 |
|
標準型 |
制動型 |
|
0.1 |
Ø18 |
5,10,15,20,25,30,40,50 |
236 |
270 |
40 |
110 |
135 |
16.5 |
65 |
9 |
45 |
30 |
18 |
20.5 |
129 |
183 |
6 |
133 |
85 |
10 |
|
Ø22 |
60,80,100,120,160,200 |
262 |
296 |
65 |
130 |
155 |
19 |
90 |
11 |
55 |
40 |
22 |
24.5 |
129 |
193 |
6 |
140 |
90 |
12 |
|
0.2 |
Ø18 |
5,10,15,20,25 |
267 |
270 |
40 |
110 |
135 |
16.5 |
65 |
9 |
45 |
30 |
18 |
20.5 |
129 |
183 |
6 |
133 |
85 |
10 |
|
Ø22 |
30,40,50,60,80,100 |
293 |
296 |
65 |
130 |
155 |
19 |
90 |
11 |
55 |
40 |
22 |
24.5 |
129 |
193 |
6 |
140 |
90 |
12 |
|
Ø28 |
100,120,160,200 |
306 |
309.5 |
90 |
140 |
175 |
23.5 |
125 |
11 |
65 |
45 |
28 |
31 |
129 |
203 |
8 |
170 |
110 |
15 |
|
0.4 |
Ø22 |
5,10,15,20,25 |
314 |
324.5 |
65 |
130 |
155 |
19 |
90 |
11 |
55 |
40 |
22 |
24.5 |
139 |
200 |
6 |
142 |
90 |
12 |
|
Ø28 |
30,40,50,60,80,100 |
330 |
337.5 |
90 |
140 |
175 |
23.5 |
125 |
11 |
65 |
45 |
28 |
31 |
139 |
210 |
8 |
170 |
110 |
15 |
|
Ø32 |
100,120,160,200 |
349 |
357 |
130 |
170 |
208 |
28.5 |
170 |
13 |
70 |
55 |
32 |
35 |
139 |
226 |
10 |
198 |
130 |
18 |
|
0.75 |
Ø28 |
5,10,15,20,25 |
350.5 |
343.5 |
90 |
140 |
175 |
23.5 |
125 |
11 |
65 |
45 |
28 |
31 |
159 |
222 |
8 |
170 |
110 |
15 |
|
Ø32 |
30,40,50,60,80,100 |
379.5 |
387 |
130 |
170 |
208 |
28.5 |
170 |
13 |
70 |
55 |
32 |
35 |
159 |
239 |
10 |
198 |
130 |
18 |
|
Ø40 |
100,120,160,200 |
401.5 |
408.5 |
150 |
210 |
254 |
34 |
196 |
15 |
90 |
65 |
40 |
43 |
185 |
249 |
12 |
230 |
150 |
20 |
|
1.5 |
Ø32 |
5,10,15,20,25 |
420.5 |
441 |
130 |
170 |
208 |
28.5 |
170 |
13 |
70 |
55 |
32 |
35 |
185 |
251 |
10 |
198 |
130 |
18 |
|
Ø40 |
30,40,50,60,80,100 |
457.5 |
478 |
150 |
210 |
254 |
34 |
196 |
15 |
90 |
65 |
40 |
43 |
185 |
260 |
12 |
230 |
150 |
20 |
|
Ø50 |
100,120,160,200 |
485.5 |
506 |
160 |
230 |
290 |
40 |
210 |
18 |
100 |
75 |
50 |
53.5 |
185 |
288 |
14 |
265 |
170 |
25 |
|
2.2 |
Ø40 |
5,10,15,20,25 |
466.5 |
487 |
150 |
210 |
254 |
34 |
196 |
15 |
90 |
65 |
40 |
43 |
185 |
260 |
12 |
230 |
150 |
20 |
|
Ø50 |
30,40,50,60,80,100 |
510.5 |
531 |
160 |
230 |
290 |
40 |
210 |
18 |
100 |
75 |
50 |
53.5 |
185 |
288 |
14 |
265 |
170 |
25 |

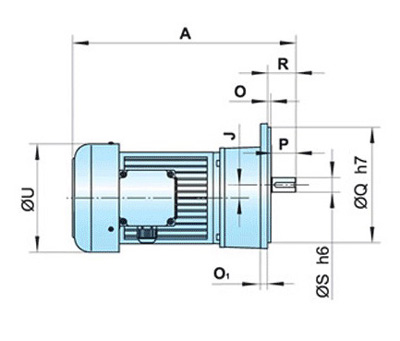

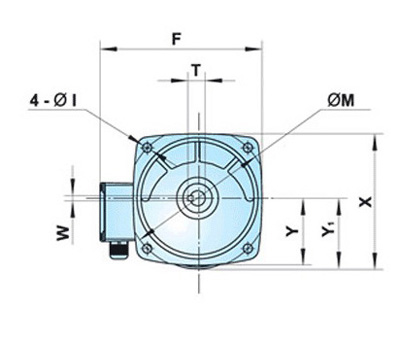

立式減速電機--外形圖

|
功率
KW |
輸出軸 |
減速比
Ratio |
主要外形及安裝尺寸 |
|
A |
F |
I |
J |
M |
O |
O1 |
P |
Q |
R |
S |
T |
U |
W |
X |
Y |
Y1 |
|
標準型 |
制動型 |
|
0.1 |
Ø18 |
5,10,15,20,25,30,40,50 |
236 |
270 |
192.5 |
11 |
16.5 |
170 |
4 |
10 |
30 |
145 |
35 |
18 |
20.5 |
129 |
6 |
157 |
80 |
81 |
|
Ø22 |
60,80,100,120,160,200 |
262 |
296 |
197.5 |
11 |
19 |
185 |
4 |
12 |
40 |
148 |
47 |
22 |
24.5 |
129 |
6 |
171.5 |
89.5 |
83.5 |
|
0.2 |
Ø18 |
5,10,15,20,25 |
267 |
270 |
192.5 |
11 |
16.5 |
170 |
4 |
10 |
30 |
145 |
35 |
18 |
20.5 |
129 |
6 |
161 |
80 |
81 |
|
Ø22 |
30,40,50,60,80,100 |
293 |
296 |
197.5 |
11 |
19 |
185 |
4 |
12 |
40 |
148 |
47 |
22 |
24.5 |
129 |
6 |
171.5 |
89.5 |
83.5 |
|
Ø28 |
100,120,160,200 |
306 |
309.5 |
208.5 |
11 |
23.5 |
215 |
4 |
15 |
45 |
170 |
50 |
28 |
31 |
129 |
8 |
198.5 |
105.5 |
88 |
|
0.4 |
Ø22 |
5,10,15,20,25 |
314 |
324.5 |
204 |
11 |
19 |
185 |
4 |
12 |
40 |
148 |
47 |
22 |
24.5 |
139 |
6 |
171.5 |
89.5 |
88.5 |
|
Ø28 |
30,40,50,60,80,100 |
330 |
337.5 |
215 |
11 |
23.5 |
215 |
4 |
15 |
45 |
170 |
50 |
28 |
31 |
139 |
8 |
198.5 |
105.5 |
93 |
|
Ø32 |
100,120,160,200 |
349 |
357 |
229.5 |
13 |
28.5 |
250 |
4 |
15 |
55 |
180 |
60 |
32 |
35 |
139 |
10 |
234 |
126 |
98 |
|
0.75 |
Ø28 |
5,10,15,20,25 |
350.5 |
343.5 |
227.5 |
11 |
23.5 |
215 |
4 |
15 |
45 |
170 |
50 |
28 |
31 |
159 |
8 |
198.5 |
105.5 |
103 |
|
Ø32 |
30,40,50,60,80,100 |
379.5 |
387 |
242 |
13 |
28.5 |
250 |
4 |
15 |
55 |
180 |
60 |
32 |
35 |
159 |
10 |
234 |
126 |
108 |
|
Ø40 |
100,120,160,200 |
401.5 |
408.5 |
270 |
18 |
34 |
310 |
5 |
18 |
65 |
230 |
71 |
40 |
43 |
185 |
12 |
284 |
149 |
126.5 |
|
1.5 |
Ø32 |
5,10,15,20,25 |
420.5 |
441 |
254 |
13 |
28.5 |
250 |
5 |
15 |
55 |
180 |
60 |
32 |
35 |
185 |
10 |
234 |
126 |
121 |
|
Ø40 |
30,40,50,60,80,100 |
457.5 |
478 |
270 |
18 |
34 |
310 |
5 |
18 |
65 |
230 |
71 |
40 |
43 |
185 |
12 |
284 |
149 |
126.5 |
|
Ø50 |
100,120,160,200 |
485.5 |
506 |
300 |
22 |
40 |
360 |
5 |
25 |
75 |
270 |
83 |
50 |
53.5 |
185 |
14 |
32.5 |
173.5 |
132.5 |
|
2.2 |
Ø40 |
5,10,15,20,25 |
466.5 |
487 |
270 |
18 |
34 |
310 |
5 |
18 |
65 |
230 |
71 |
40 |
43 |
185 |
12 |
284 |
149 |
126.5 |
|
Ø50 |
30,40,50,60,80,100 |
510.5 |
531 |
300 |
22 |
40 |
360 |
5 |
25 |
75 |
270 |
83 |
50 |
53.5 |
185 |
14 |
32.5 |
173.5 |
132.5 |
性能參數簡表
|
0.1KW/1400rpm |
|
公稱速比
i |
輸出軸徑
mm |
輸出轉速
rpm |
輸出扭矩
N.m |
實際速比
i |
輸出軸徑向載荷
N |
|
5 |
Ø 18 |
282 |
3.2 |
4.97 |
588 |
|
10 |
138 |
6.5 |
10.12 |
882 |
|
15 |
92 |
9.8 |
15.16 |
980 |
|
20 |
70 |
12.9 |
20.08 |
1180 |
|
25 |
56 |
16.1 |
24.89 |
1270 |
|
30 |
46 |
19.6 |
30.46 |
1370 |
|
40 |
35 |
25.7 |
40.11 |
1470 |
|
50 |
28 |
31.1 |
50.14 |
1570 |
|
60 |
Ø22 |
23 |
37.5 |
62.17 |
2160 |
|
80 |
18 |
49.5 |
79.12 |
2450 |
|
100 |
14 |
62.9 |
98.18 |
2450 |
|
100 |
- |
- |
- |
2450 |
|
120 |
11 |
76.1 |
122.27 |
2450 |
|
160 |
9 |
100.7 |
155.62 |
2450 |
|
200 |
7 |
125.4 |
194.52 |
2450 |
|
0.2KW/1400rpm |
|
公稱速比
i |
輸出軸徑
mm |
輸出轉速
rpm |
輸出扭矩
N.m |
實際速比
i |
輸出軸徑向載荷
N |
|
5 |
Ø 18 |
282 |
6.5 |
4.97 |
588 |
|
10 |
138 |
12.6 |
10.12 |
882 |
|
15 |
92 |
19.1 |
15.16 |
980 |
|
20 |
70 |
26.3 |
20.08 |
1180 |
|
25 |
56 |
32.6 |
24.89 |
1270 |
|
30 |
Ø22 |
45 |
38.9 |
30.86 |
1760 |
|
40 |
35 |
50.4 |
39.56 |
1860 |
|
50 |
29 |
63 |
49.09 |
1960 |
|
60 |
23 |
75.6 |
62.17 |
2160 |
|
80 |
18 |
100.8 |
79.12 |
2450 |
|
100 |
14 |
103.9 |
98.18 |
2450 |
|
100 |
Ø 28 |
13 |
125.4 |
104.08 |
2840 |
|
120 |
12 |
150 |
120.88 |
3330 |
|
160 |
8 |
200.4 |
165 |
3430 |
|
200 |
7 |
250.7 |
196.43 |
3430 |
|
0.4KW/1400rpm |
|
公稱速比
i |
輸出軸徑
mm |
輸出轉速
rpm |
輸出扭矩
N.m |
實際速比
i |
輸出軸徑向載荷
N |
|
5 |
Ø22 |
282 |
12.9, |
4.86 |
882 |
|
10 |
144 |
25 |
9.71 |
1180 |
|
15 |
92 |
38.6 |
15.27 |
1370 |
|
20 |
72 |
51.4 |
19.43 |
1470 |
|
25 |
58 |
65.4 |
24.29 |
1670 |
|
30 |
Ø28 |
47 |
78.2 |
30 |
2550 |
|
40 |
36 |
100.7 |
38.96 |
2840 |
|
50 |
29 |
125.4 |
48.29 |
3140 |
|
60 |
24 |
150 |
58.22 |
3430 |
|
80 |
18 |
200.4 |
79.48 |
3430 |
|
100 |
14 |
206.8 |
98.51 |
3430 |
|
100 |
Ø 32 |
14 |
250.7 |
98.29 |
4900 |
|
120 |
12 |
301.1 |
121.56 |
5880 |
|
160 |
9 |
400.7 |
158.48 |
5880 |
|
200 |
7 |
461.8 |
202.5 |
5880 |
|
0.75KW/1400rpm |
|
公稱速比
i |
輸出軸徑
mm |
輸出轉速
rpm |
輸出扭矩
N.m |
實際速比
i |
輸出軸徑向載荷
N |
|
5 |
Ø28 |
278 |
24.6 |
5.04 |
1270 |
|
10 |
140 |
48.2 |
10 |
1760 |
|
15 |
94 |
72.9 |
14.95 |
2160 |
|
20 |
69 |
97.5 |
20.4 |
2350 |
|
25 |
58 |
122.1 |
24.29 |
2450 |
|
30 |
Ø32 |
46 |
145.7 |
30.67 |
4020 |
|
40 |
35 |
187.5 |
39.69 |
4210 |
|
50 |
29 |
235.7 |
49.09 |
4610 |
|
60 |
24 |
282.9 |
59.54 |
5490 |
|
80 |
18 |
376.1 |
79.38 |
5880 |
|
100 |
14 |
387.9 |
98.18 |
5880 |
|
100 |
Ø40 |
14 |
439 |
98.90 |
7060 |
|
120 |
11 |
527 |
122.08 |
7060 |
|
160 |
9 |
703 |
155.56 |
7060 |
|
200 |
7 |
764 |
194.44 |
7060 |
|
1.5KW/1400rpm |
|
公稱速比
i |
輸出軸徑
mm |
輸出轉速
rpm |
輸出扭矩
N.m |
實際速比
i |
輸出軸徑向載荷
N |
|
5 |
Ø32 |
280 |
48.2 |
5 |
1760 |
|
10 |
140 |
97.5 |
10 |
2450 |
|
15 |
93 |
145.7 |
15 |
2840 |
|
20 |
70 |
193.9 |
20 |
3230 |
|
25 |
55 |
242.1 |
25.56 |
3820 |
|
30 |
Ø40 |
47 |
272 |
30 |
5100 |
|
40 |
34 |
351 |
41.54 |
5880 |
|
50 |
27 |
439 |
51.27 |
7060 |
|
60 |
24 |
527 |
59.34 |
7060 |
|
80 |
17 |
703 |
83.08 |
7060 |
|
100 |
14 |
724 |
102.55 |
7060 |
|
100 |
Ø50 |
13 |
878 |
104.72 |
9800 |
|
120 |
12 |
1060 |
116.79 |
9800 |
|
160 |
8 |
1230 |
165.88 |
9800 |
|
200 |
7 |
1230 |
194.37 |
9800 |
|
2.2KW/1400rpm |
|
公稱速比
i |
輸出軸徑
mm |
輸出轉速
rpm |
輸出扭矩
N.m |
實際速比
i |
輸, 出軸徑向載荷
N |
|
5 |
Ø40 |
272 |
67 |
5.14 |
2160 |
|
10 |
136 |
133 |
10.29 |
3140 |
|
15 |
95 |
200 |
14.69 |
3530 |
|
20 |
68 |
266 |
20.57 |
4020 |
|
25 |
54 |
332 |
25.71 |
4700 |
|
30 |
Ø50 |
45 |
399 |
30.8 |
6960 |
|
40 |
36 |
515 |
38.82 |
7250 |
|
50 |
28 |
644 |
50.73 |
8620 |
|
60 |
24 |
773 |
59.27 |
9800 |
|
80 |
18 |
1029 |
77.45 |
9800 |
|
100 |
14 |
1230 |
100.76 |
9800 |
••••••••如需查詢更多資料，請下載PDF電子樣本。 |
